BP3166XH Low PF Isolated Constant Current Driver Chip 15W Simplified Solution
無 VCC 電容、無啟動電阻 集成高壓供電功能 無需輔助繞組檢測和供電 寬范圍輸入電壓 士5% LED 輸出電流精度 LED 短路保護 LED開路保護 多燈并聯無閃爍 芯片供電欠壓保護 過熱調節功能

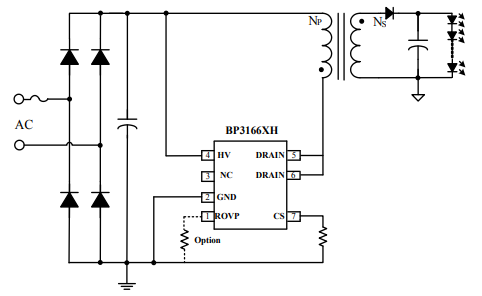

BP3166XH is a high-precision flyback LED constant current driver chip. The chip operates in inductor current intermittent mode and is suitable for isolated flyback LED constant current power supply with a full range of input voltages from 85Vac to 265Vac. The BP3166XH chip integrates a high-voltage power switch internally, using gate demagnetization detection technology and high-voltage JFET power supply technology. It does not require VCC capacitors and starting resistors, making its peripheral devices simpler and saving peripheral costs and volume.
advantage
No VCC capacitor, no starting resistor
Integrated high-voltage power supply function
No need for auxiliary winding detection and power supply
Wide range input voltage
5% LED output current accuracy
LED short circuit protection
LED open circuit protection
EN function
Under voltage protection for chip power supply
Overheating regulation function
LED Bulbs light
LEDf tube light
Other LED lighting

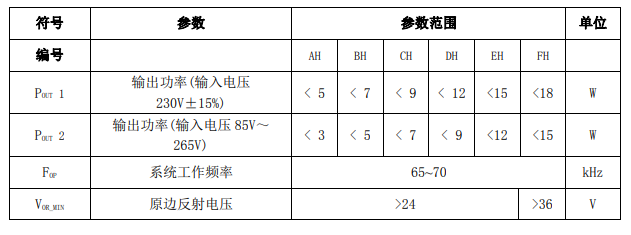

| PRODUCT MODEL | encapsulation | MOS internal resistance | MOS withstand voltage | Over temperature protection | Anti multiple parallel flashing lights | open protect | Output power @ Vin: 85V-265V (W) | Output power @ Vin: 176V-265V (W) |
| BP3166XS | SOP7 | 25Ω-14Ω | 650V | Y | Y | Y(Internal) | 3W-5W | 5W-7W |
| BP3166XH | SOP7 | 9Ω-3Ω | 650V-600V | Y | Y | Y(Internal) | 7W-12W | 9W-15W |
| BP3167XH | DIP7 | 4.7Ω-2Ω | 650V-600V | Y | Y | Y(Internal) | 12W-24W | 15W-24W |
| BP3189A | SOP8 | - | - | Y | Y | Y(External) | 50W | 100W |
| BP3336DB | SOP8 | 2.4Ω | 650V | Y | Y | Y(External) | - | 30W |
| BP3186CB | SOP8 | 5.7Ω | 650V | Y | Y | Y(External) | - | 20W |
| BP3187DB | DIP7 | 2Ω | 650V | Y | Y | Y(External) | - | 40W |
| BP3187ED | DIP7 | 2.5Ω | 700V | Y | Y | Y(External) | - | 45W |
| BP3182EB | BPSOP10 | 1.8Ω | 650V | Y | Y | Y(External) | - | 40W |
| BP3182ED | BPSOP10 | 2Ω | 700V | Y | Y | Y(External) | - | 40W |
| BP3187EB | DIP7 | 1.8Ω | 650V | Y | Y | Y(External) | - | 50W |
| BP3337DB | DIP7 | 2Ω | 650V | Y | Y | Y(External) | - | 40W |
| BP3337EB | DIP7 | 1.8Ω | 650V | Y | Y | Y(External) | - | 50W |
| BP3189B | SOP8 | External | External | Y | Y | Y(External) | - | 100W |
